Heart Valve Prosthesis
Accelerated Wear Testing with

AWT-V8 system with Dual Control Technology (DCT)™

Computer: Processor: 13th Gen i5 or newer, Memory: 16GB (RAM), Display: 15.6" 1080p (1920X1080p), Storage: 500 GB+, Windows 11 pro
Weight:

Test module Empty = 20.6 kg/module Full = 22.1 kg/module

Controller and Data Acquisition unit 13.5kg

Footprint - 6 module configuration

Min Bench Length = 1650 mm* Min Bench Depth = 600 mm Height = 362 mm (without Camera) Height = 400 mm (with Camera)

Footprint - 2 module configuration

Min Bench Length = 850 mm* Min Bench Depth = 600 mm Height = 362 mm (without Camera) Height = 400 mm (with Camera)

Controller power supply requirements: 1200 W w/ 6 modules, 1 light ring, heaters on, at 100 mmHg
System operating frequencies: 5 Hz to 30 Hz Test sample behavior and frequency response dependent
Test chamber diameter: Max support OD: 95 mm
Test chamber height & clearance: Total height/clearance up to 113.5 mm
HS camera position max height: 154 mm (194 mm with cable)
Micrometric Rail Support System: width 50.95 mm (108 mm with knob)
Piston max stroke volume: 38 ml/stroke
Test chamber transparency: Inflow, outflow, left and right, 1 angle at right 45°
Average hydrostatic pressure head: 10 mmHg
High Speed Camera:

Sensor format: 9.2mm x 5.8mm (2/3") Pixel size: 4.8um Resolution: 2.51 MP Size: 1024x1024 @ 305 fps, 320x320 @ 1129 fps

Lens: 25mm, F2.0, C-mount

Return to Overview tab →

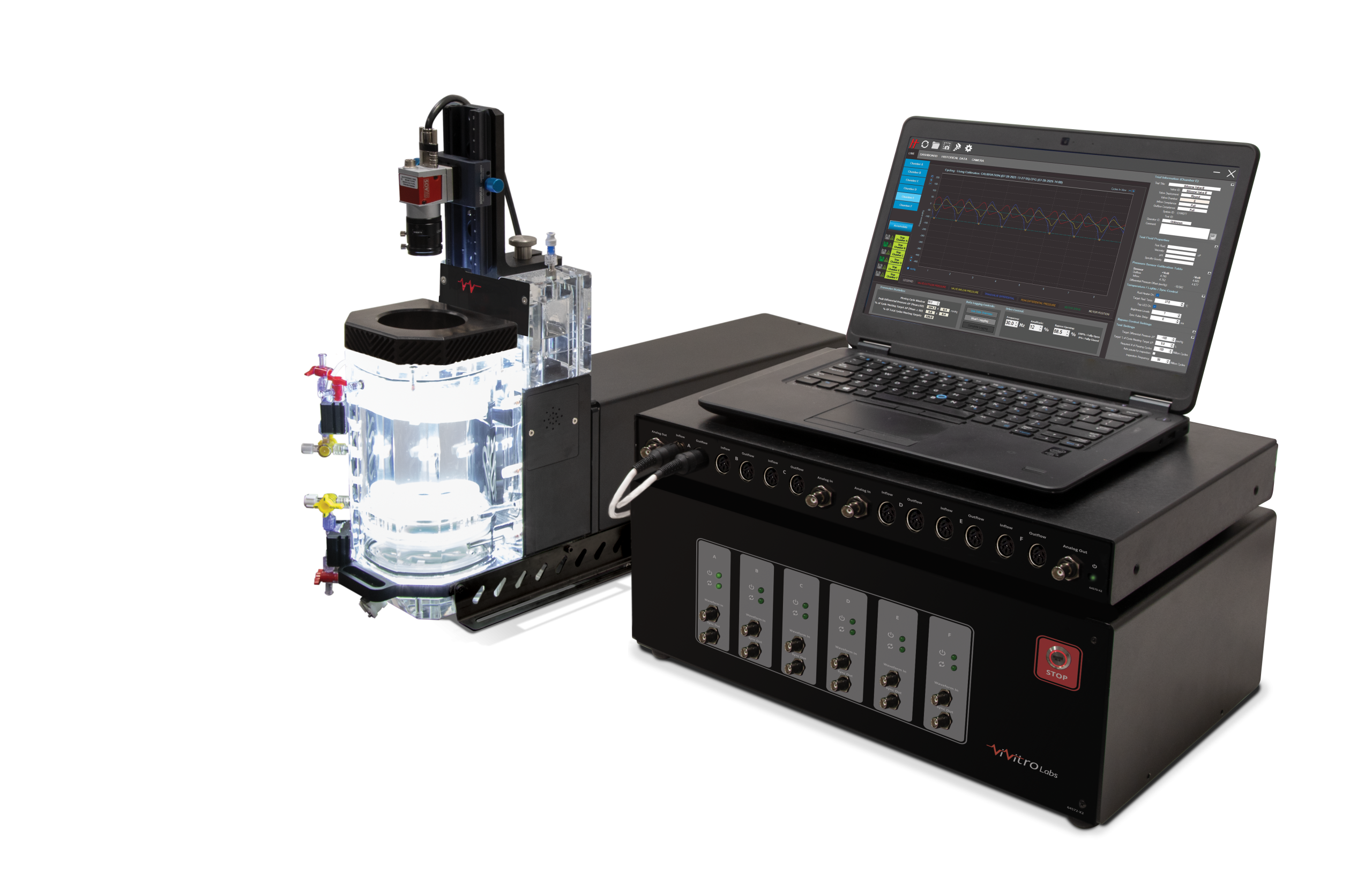

ViVitro AWT System with DCT™ 1 test module configuration
